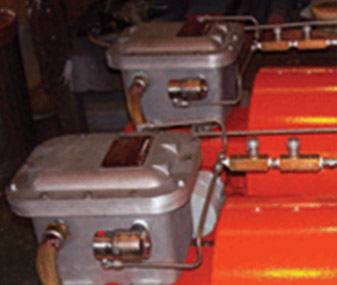

The ATI Hydraulic Positioning System (HPS) provides throttling capability for our hydraulic actuators.

This combination of ATI technology provides an excellent solution for control valve applications that require hydraulic actuation.

The HPS receives a 4 – 20 mA signal from the DCS or PLC and uses ATI proprietary technology to move the actuator to its desired position. A comparator circuit and feedback mechanism are integral in an explosion- proof system.

The positioning system is a severe service, durable solution with a proven track record of success in even the harshest of conditions, including offshore oil platforms.

ATI Hydraulic Positioning System Performance Highlights
  • Explosion-proof
  • Ideal for positioning hydraulic actuators
  • Severe service capable, including in offshore environments

Industries

ATI Hydraulic Positioning Systems are used in the following industries. Click below to learn more.
